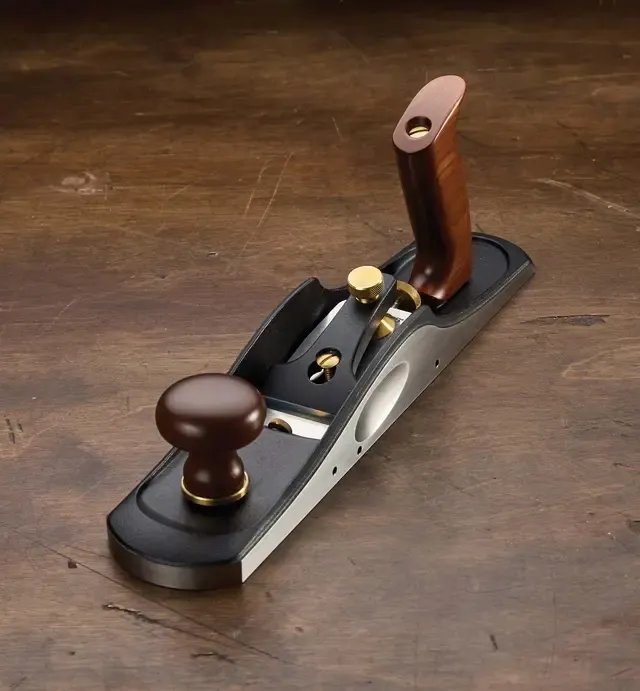

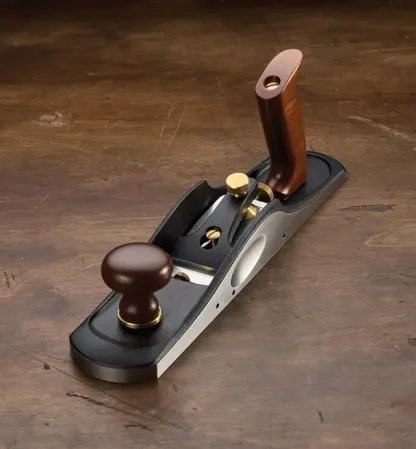

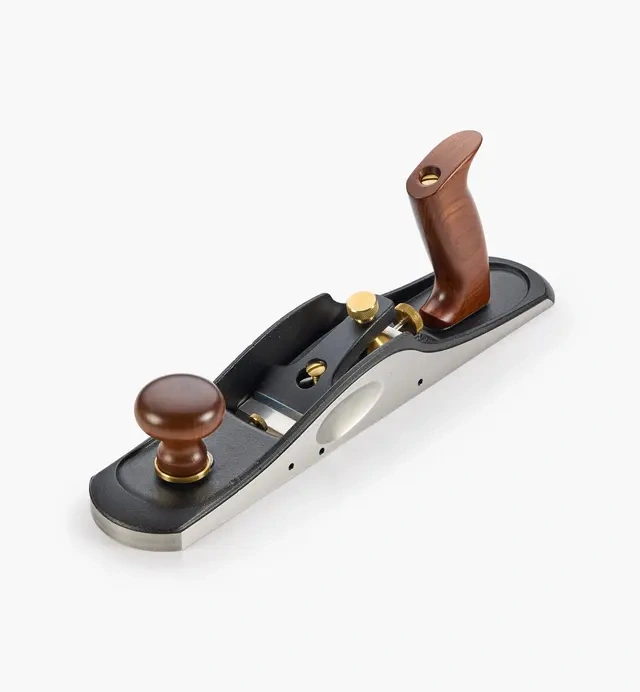

The Ultimate Low-Angle Jack Plane – One Tool, Infinite Precision
Product Overview
End grain tearing. Misaligned miters. Chatter marks that ruin a perfect surface.These are the problems every woodworker knows too well.This low-angle jack plane is designed to eliminate them completely.

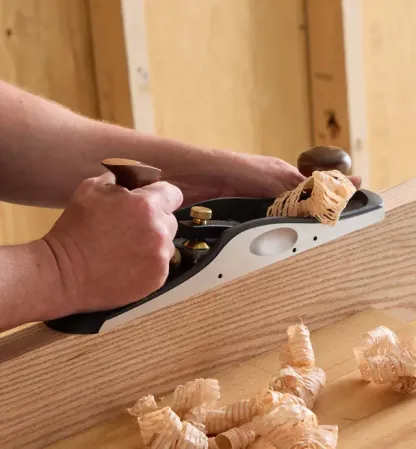

With a heavy, stable body and ultra-low cutting geometry, it delivers effortless slicing through difficult grain while maintaining absolute control over every pass.One tool. Multiple functions. Zero frustration.
Key Features
Multi-Function Master Tool

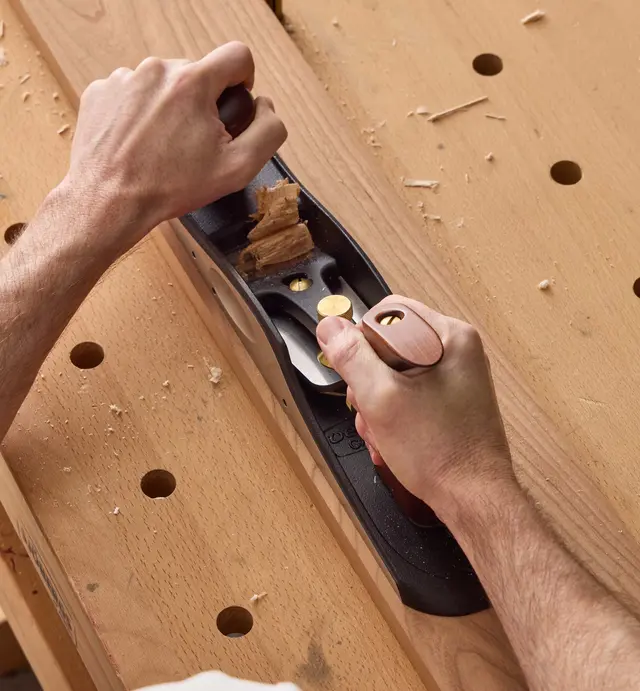

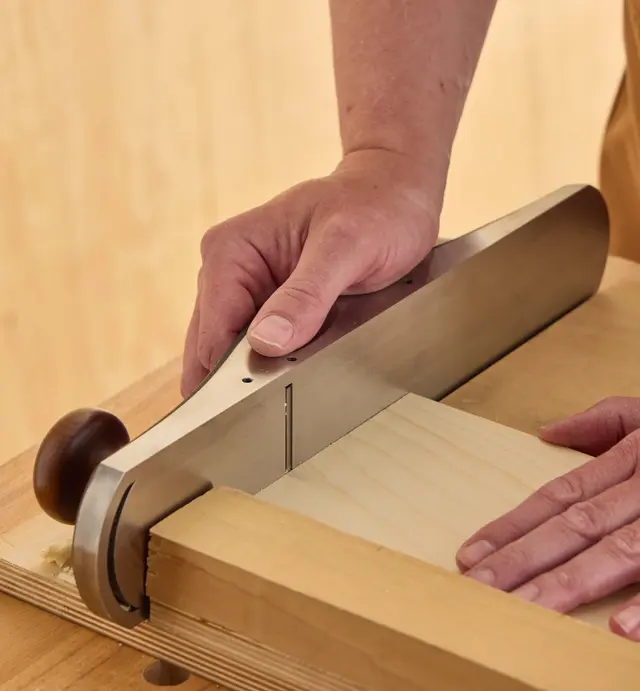

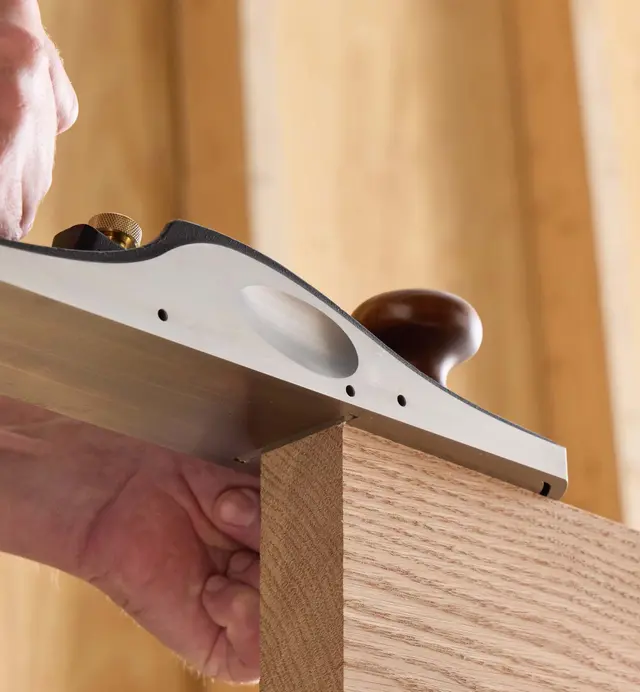

Acts as a jointer, smoother, miter shooter, and end-grain specialist in one compact design.
Low-Angle Cutting Power
12° bed angle paired with a 25° blade creates a 37° effective cutting angle.

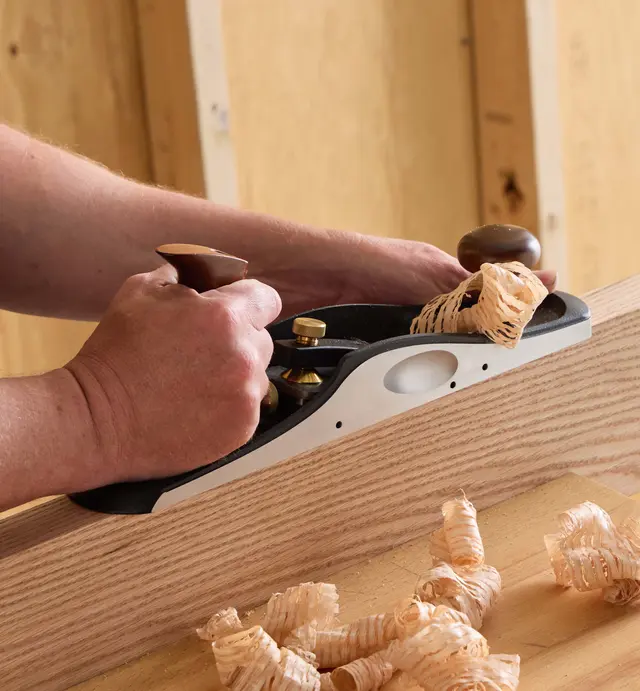

- Effortless end grain slicing
- Clean, tear-out-free cuts
- Optional blades (38° / 50°) for specialized work
⚙️ Precision Engineering
Built for repeatable, flawless results.
- Stress-relieved ductile cast iron body

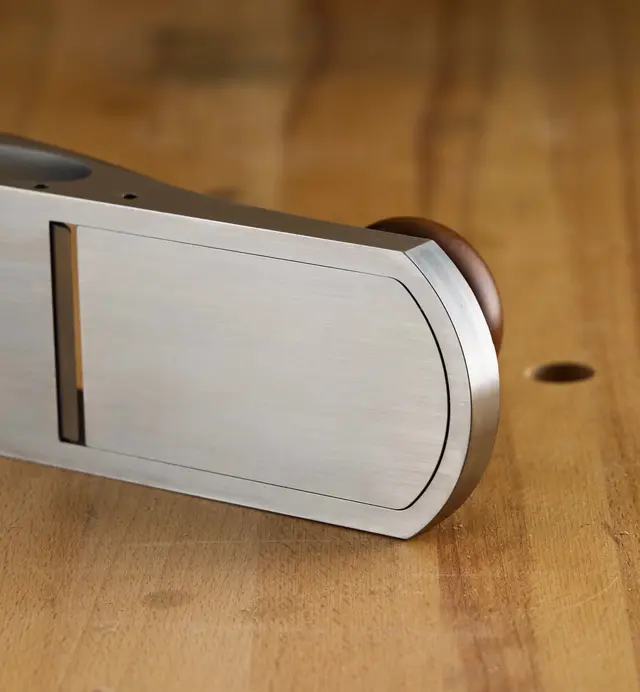

- Perfectly machined square sides
- Norris-style adjustment system
- Locking set screws prevent blade drift
🖐️ Ergonomic Control & Balance
Designed for long, controlled work sessions.
- Solid hardwood front knob & rear handle
- Nearly 6 lbs of stabilizing weight
- Low center of gravity reduces chatter
- Smooth, intuitive glide across surfaces
🧠 Blade Flexibility System
Adapt cutting performance instantly.
- Standard A2 / O1 / PM-V11™ blade options
- Optional 38° and 50° blades for tough grain
- PM-V11™ offers extreme edge retention and durability
📐 Built for Accuracy
Every surface is engineered for precision alignment.
- Adjustable mouth for fine or heavy cuts
- Stable sole registration
- Consistent shaving thickness control
Technical Specifications
- Length: 15 in (381 mm)
- Width: 2 7/8 in (73 mm)
- Weight: ~6 lbs (2.7 kg)
- Design: Bevel-up low-angle system
- Bed Angle: 12°
- Standard Blade: 25°, 2 1/4 in wide, 3/16 in thick
- Cutting Angle: 37° (with standard blade)
- Blade Options: A2 / O1 / PM-V11™
- Optional Blades: 38° / 50° / toothed A2
- Body: Stress-relieved ductile cast iron
- Adjustment: Norris-style mechanism
- Mouth: Adjustable front mechanism
- Handles: Hardwood front knob & rear grip

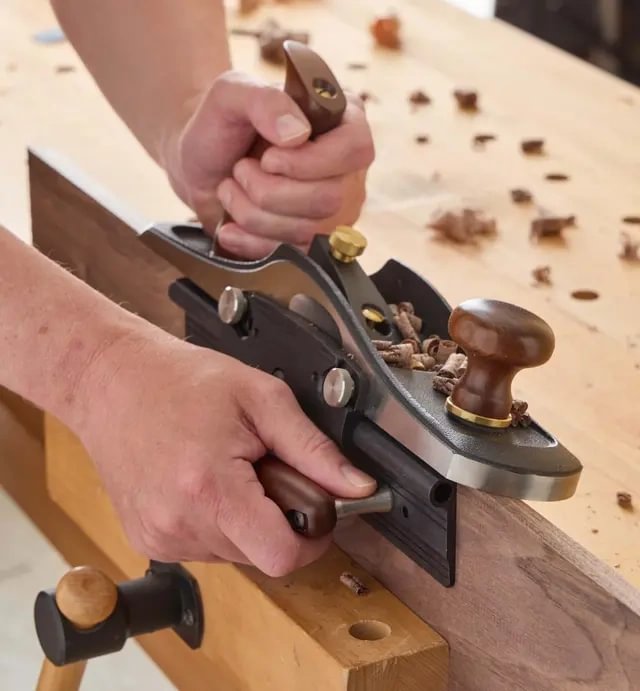

- Accessories: Fence & shooting grip compatible (sold separately)
What’s in the Box
- 1 × Low-Angle Jack Plane
- 1 × 25° Lapped Blade (A2 / O1 / PM-V11™ option)
- 1 × Honing Guide Instructions
